Features
20X Optical Zoom, View angle 3.2 (Tele) 56 (Wide)
Video Output ชนิด HDMI, SDI, LAN, USB3.0
Preset number 10 (Remote)
Resolution Full HD (1920×1080) / 2.07 megapixel
It has a fast and highly accurate autofocus system.
Plug and Play

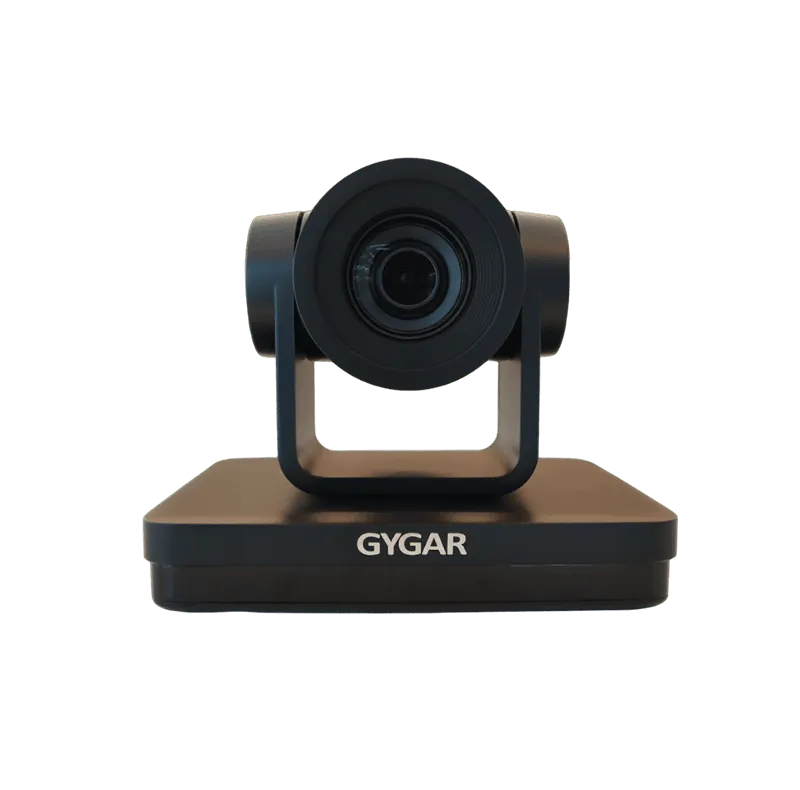

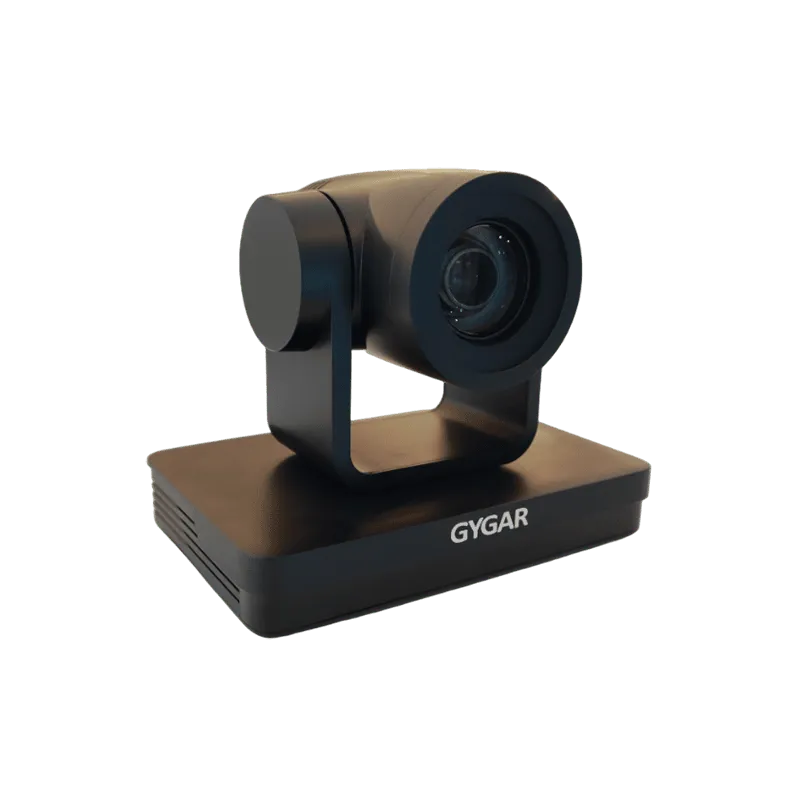

Tracking Conference Camera CG-UV570-20SU-T
฿29,853
It is faster with USB 3.0 communication and supports H265 compression, making it ideal for long distance meetings. Or transmit the video signal to other devices with Output port connection types HDMI, SDI, LAN, USB 3.0.
Description & Feature
More Information
| Sensor Size | 1/2.8 inch high quality HD CMOS sensor Effective |
| Optical Zoom | 20X, f = 5.2 ~104mm |
| Video Format | HDMI Output: 1080P60,1080P50,1080P30,1080P25,720P60,720P50, 1080P59.94 1080P29.97,720P59.94 USB3.0 Output , Mainstream: YUY2/NV12: 1920×1080/1280×720/1024×576/800×600 800×448/640×360/640×480/480×270/320×180@30/25/20/15/10/5fps MJPG/H264: 1920×1080/1600×896/1280×720/1024×576/960×540/800×600/800×448 720×576/720×480/640×360/640×480/480×270/352×288/320×240@30/25/20/15/10/5fps Substream: YUY2/NV12:1920×1080/1280×720/1024×576/800×600/800×448/640×360 640×480/480×270/320×180@30/25/20/15/10/5fps; MJPG/H264: 1920×1080/1600×896 1280×720/1024×576/960×540/800×600/800×448/720×576/720×480/640×360/640×480 480×270/352×288/320×240@30/25/20/15/10/5fps |
| Camera View | 3.2° (tele) 56° (wide) |
| Aperture Value | F 1.5~3.0 |
| Minimum Brightness | 0.5Lux (F1.8, AGC ON) |
| White Balance | Auto/Manual/One Push/3000K/3500K/4000K/4500K/5000K/5500K/6000K/6500K/7000K |
| Focus/Aperture/Electronic Shutter | Auto/Manual/One Push Focus |
| Iris | Auto/Manual |
| Shutter | Auto/Manual |
| Backlight Contrast | On/Off |
| DRC | Off/Dynamic level adjustment |
| Video Adjustment | Brightness, Color, Saturation, Contrast, Sharpness, B/W mode, Gamma curve |

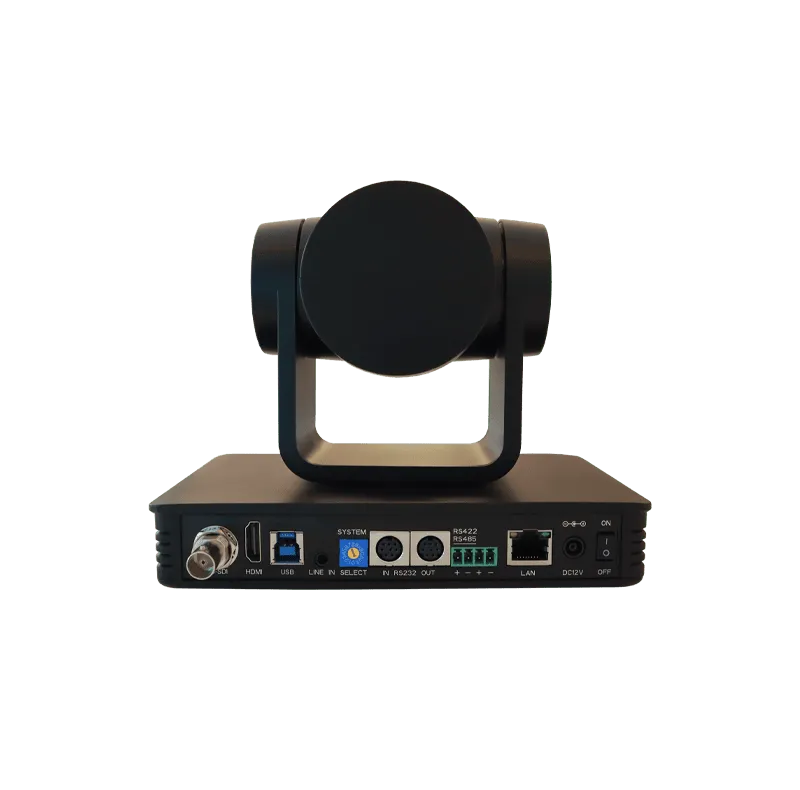

| Video Output | HDMI, SDI, LAN, USB3.0, RS232, RS422, Audio |
| Image Signal Compression | LAN Interface: H.265, H.264, Dual stream output, USB3.0 Interface : YUY2, MJPEG, H.264, NV12, H.265 (main stream), YUY2, MJPEG, H.264, NV12 (slave stream) |
| Audio Signal Compression | AAC,MP3,G.711A |
| LAN Port | 10M/100M/1000M adaptive Ethernet port, support POE, audio and video output |
| Network Protocol | RTSP, RTMP, ONVIF, GB/T28181, VISCA OVER IP, IP VISCA, RTMPS, SRT, Support network VISCA control protocol, Support remote upgrade, remote restart, remote reset |
| Control Protocol | VISCA/Pelco-D/Pelco-P, Baud Rate : 115200/9600/4800/2400bps |
| USB Communication Protocol | UVC, UAC |
| Rotation Angle, Horizontal/Vertical | ±170° , -30° ~+90° |
| Horizontal Rotation Speed | 0.1 -100° /sec |
| Vertical Rotation Speed | 0.1-45° /sec |
| Rotation Speed Set | Horizontal : 100° /sec, Vertical: 45° /sec |
| presets | 255 presets (10 presets by remote controller) |
| Power Supply | DC12V±10% |
| Electric Current | Maximun; 1A |
| Power Consumption | Maximun; 12W |
| Operating Temperature | -10°C ~+ 50°C |
| Operating Humidity | 20% ~ 80% |
